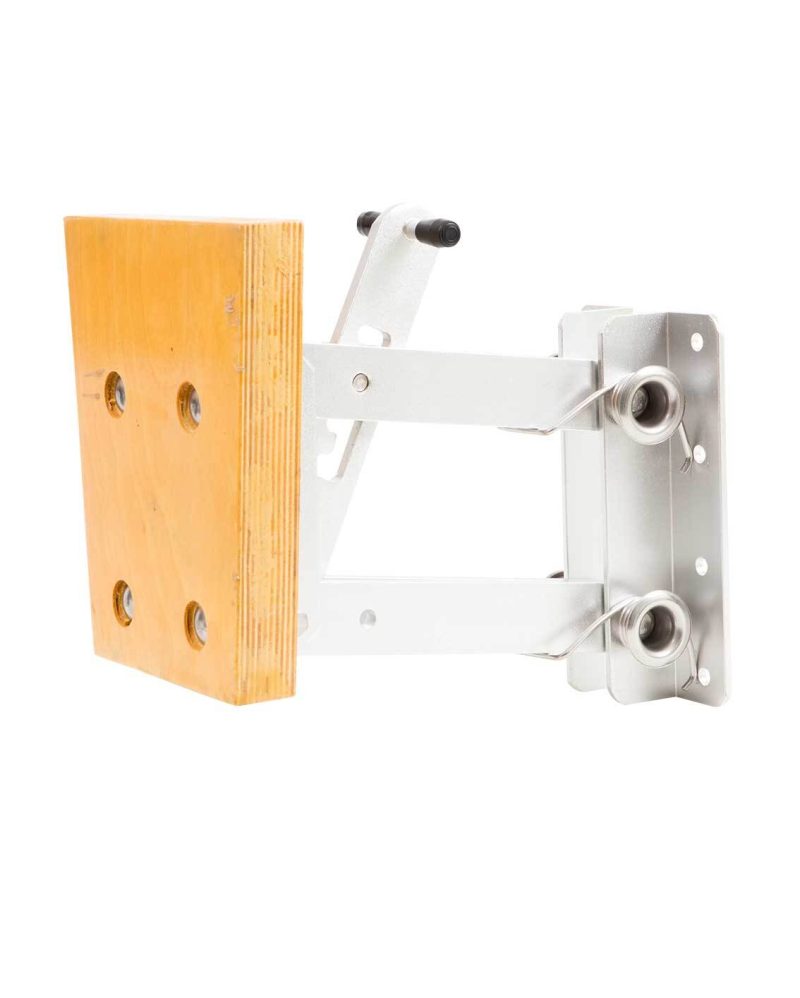

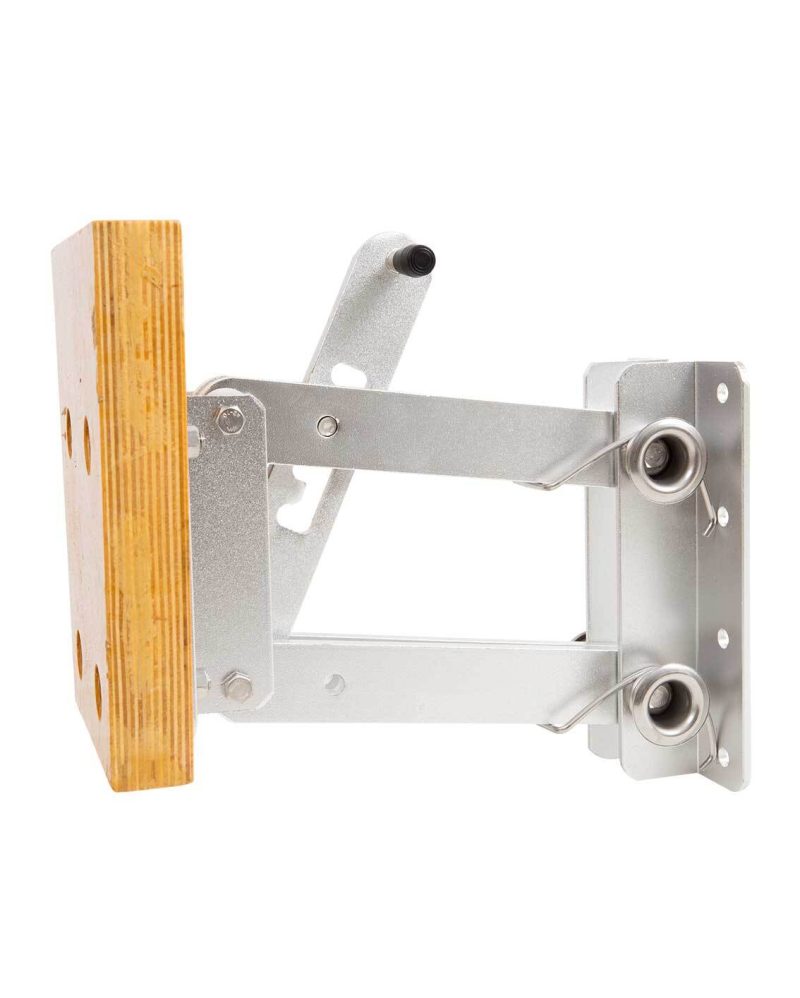

OUTBOARD MOTOR BRACKET ALUMINIUM WITH WOODEN PAD UP TO 15HP or 25KGS
Aluminium Outboard Motor Bracket Aluminium With Wooden Pad – Up To 15 or 25Kgs
Complete with varnished laminated wooded pad.
Spring loaded with 4 lock positions and total lift of 300mm.
Attached to the transom by 8 x M8 bolts ‘not included’
Pad size: 240mm x 180mm.
Max Engine size 25kgs
Max motor weight 25kgs
Bottom bracket length: 230mm
Bottom bracket width: 135mm
This outboard motor bracket is sprung loaded to support the weight of the engine and enable easy lifting once installed on the boat. Do not try to move the bracket position until securely fixed to the boat and keep fingers away from the moving parts to avoid injury.
